EZRUN 1626SD Sensored Brushless Motor for 1/28th Scale
The Hobbywing EZRUN 1626SD is a compact, high-efficiency sensored brushless motor purpose-built for 1/28th scale RC platforms. Sensored operation eliminates cogging at low speeds, delivering smooth, predictable throttle response whether you're crawling through a technical section or pinning it on a straight. Available in 3500KV, 5000KV, and 6500KV to match your gearing, track, and driving style.
Key Features
Zero cogging — Sensored design provides consistent torque and excellent low-speed driveability
Timing advance compatible — When paired with the EZRUN Mini28 ESC, timing can be adjusted to push top speed further
High efficiency, cool operation — Optimized thermal management for sustained 2S running
Modular detachable structure — Easy to remove and clean after every session
Lightweight — 18g keeps your build weight-competitive
Specifications
Spec
3500KV
5000KV
6500KV
SKU
HW-30402653
HW-30402654
HW-30402153
Poles
2
2
2
No-Load Current
0.4A
0.5A
0.6A
Input Voltage
2S LiPo
2S LiPo
2S LiPo
Diameter
16mm
16mm
16mm
Length
26mm
26mm
26mm
Weight
18g
18g
18g
Application
1/28th Mini
1/28th Mini
1/28th Mini
Pairs Well With

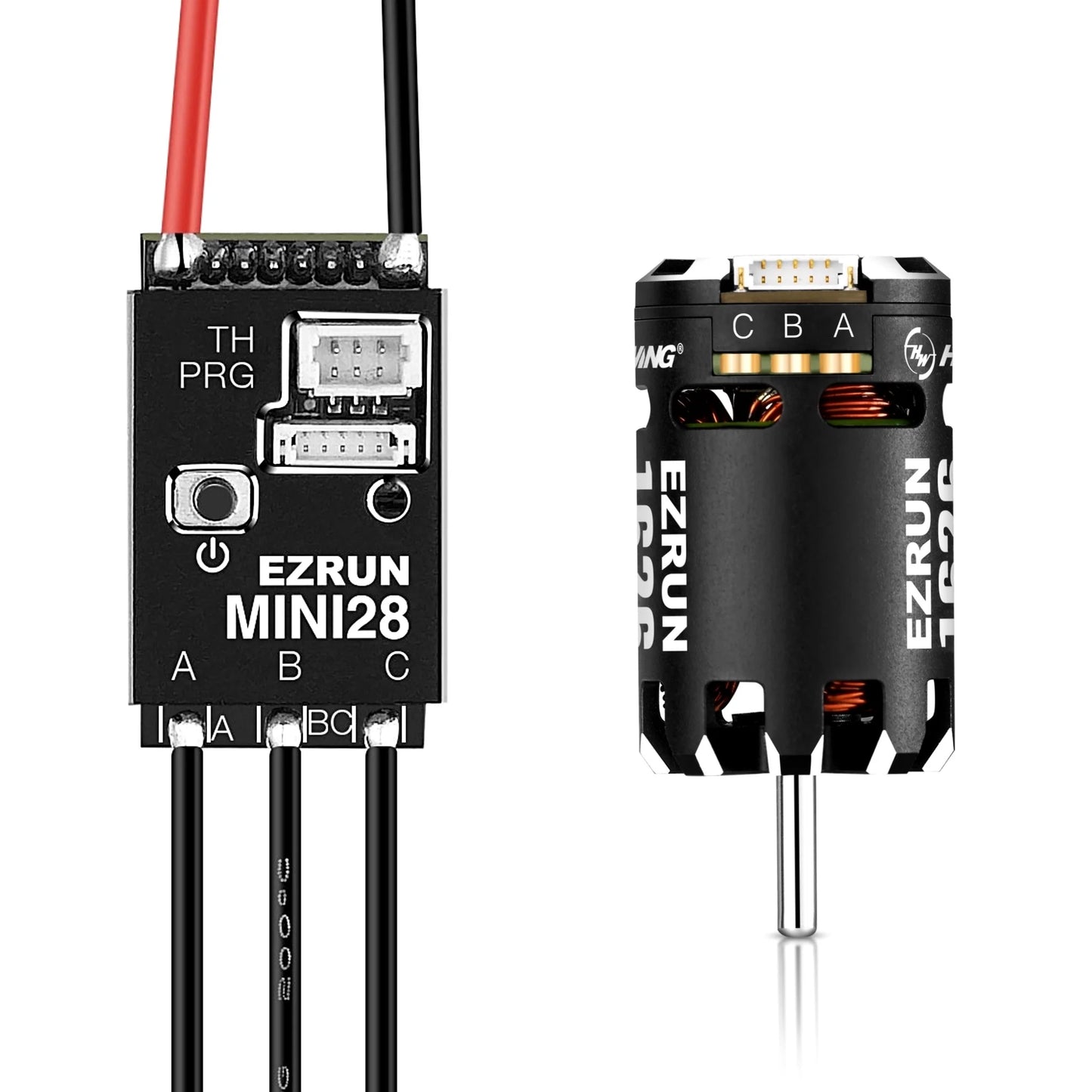

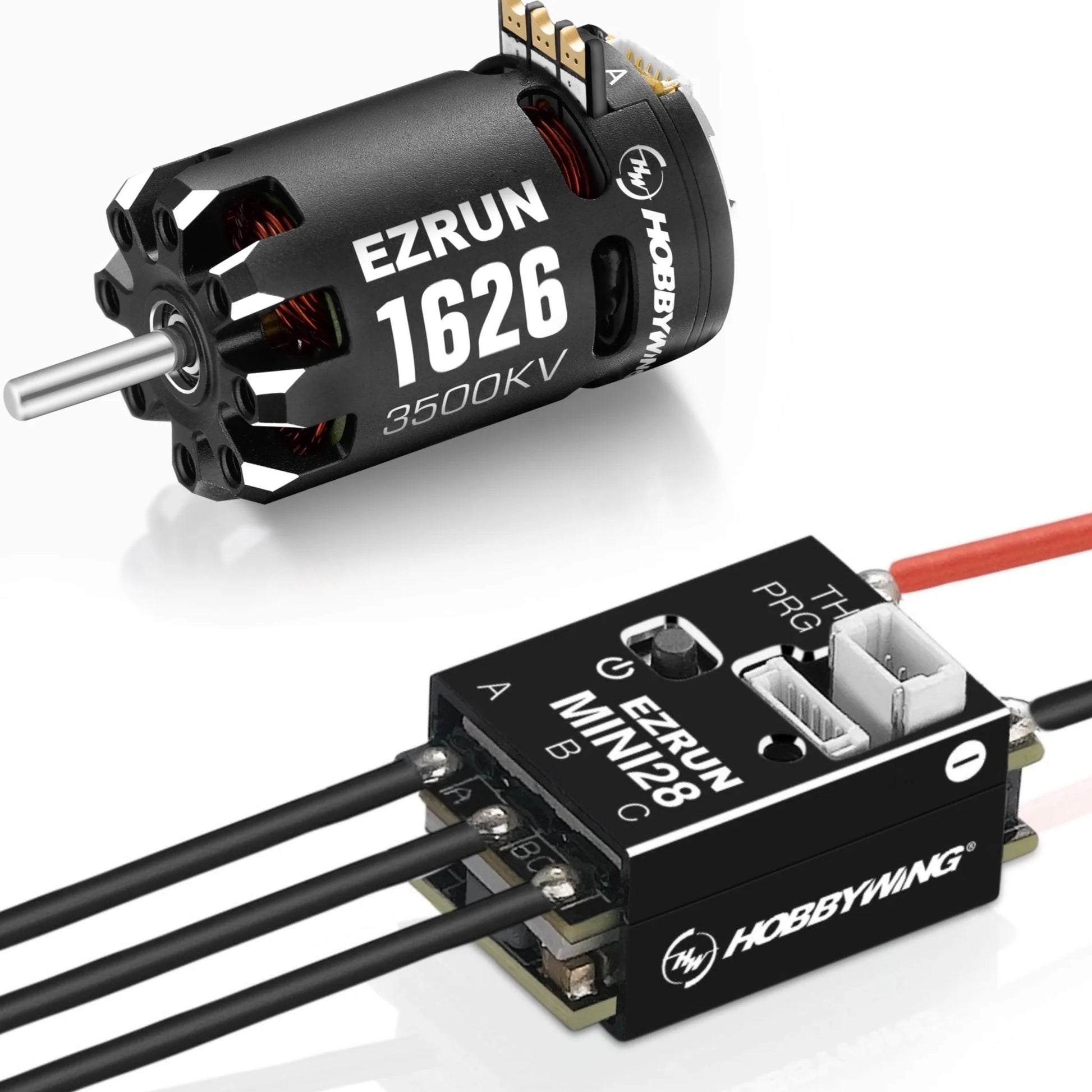

EZRUN Mini28 ESC — The recommended ESC match for this motor, enabling full sensored operation and timing advance tuning.
Authorized Hobbywing dealer. Warranty-backed, ships from US stock.
