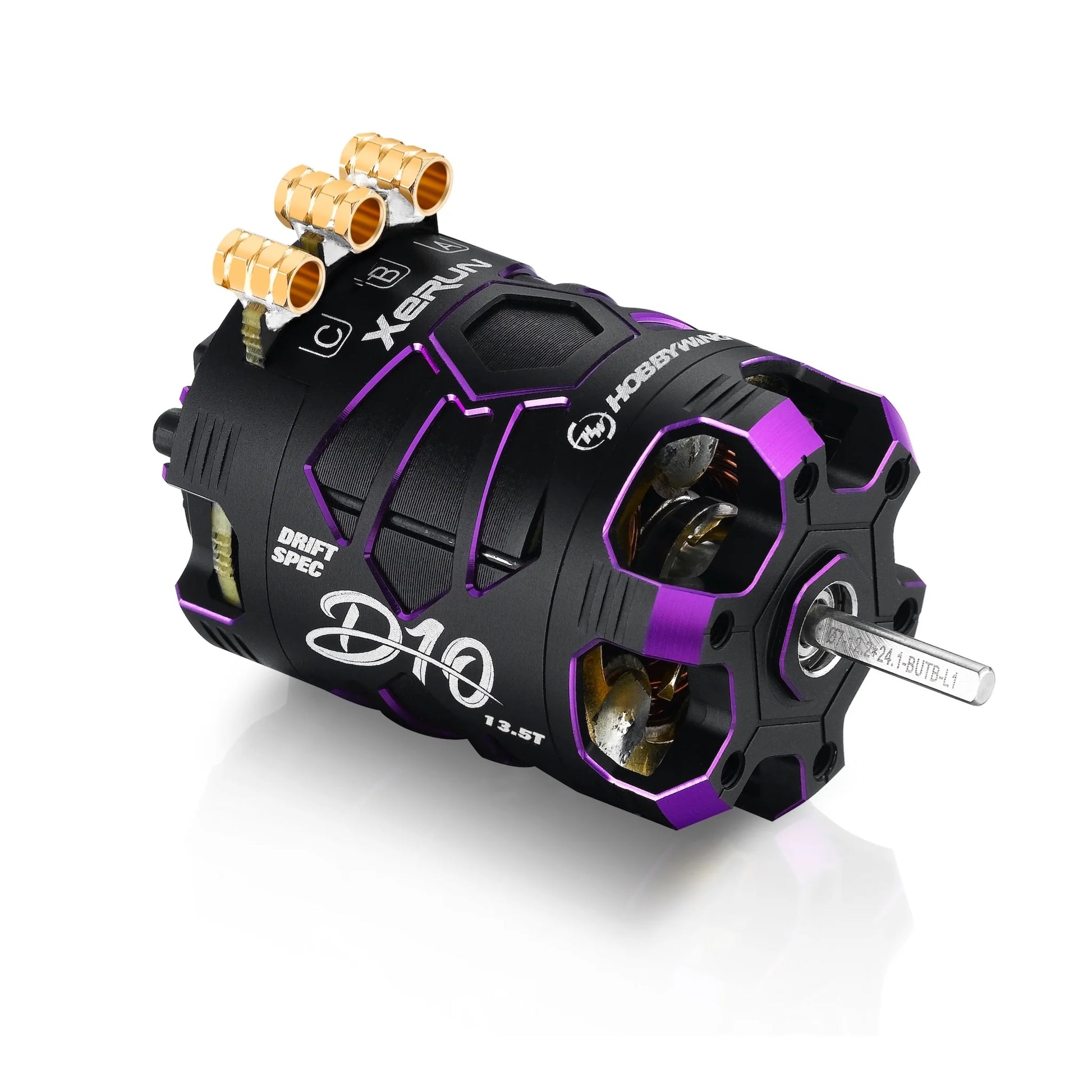

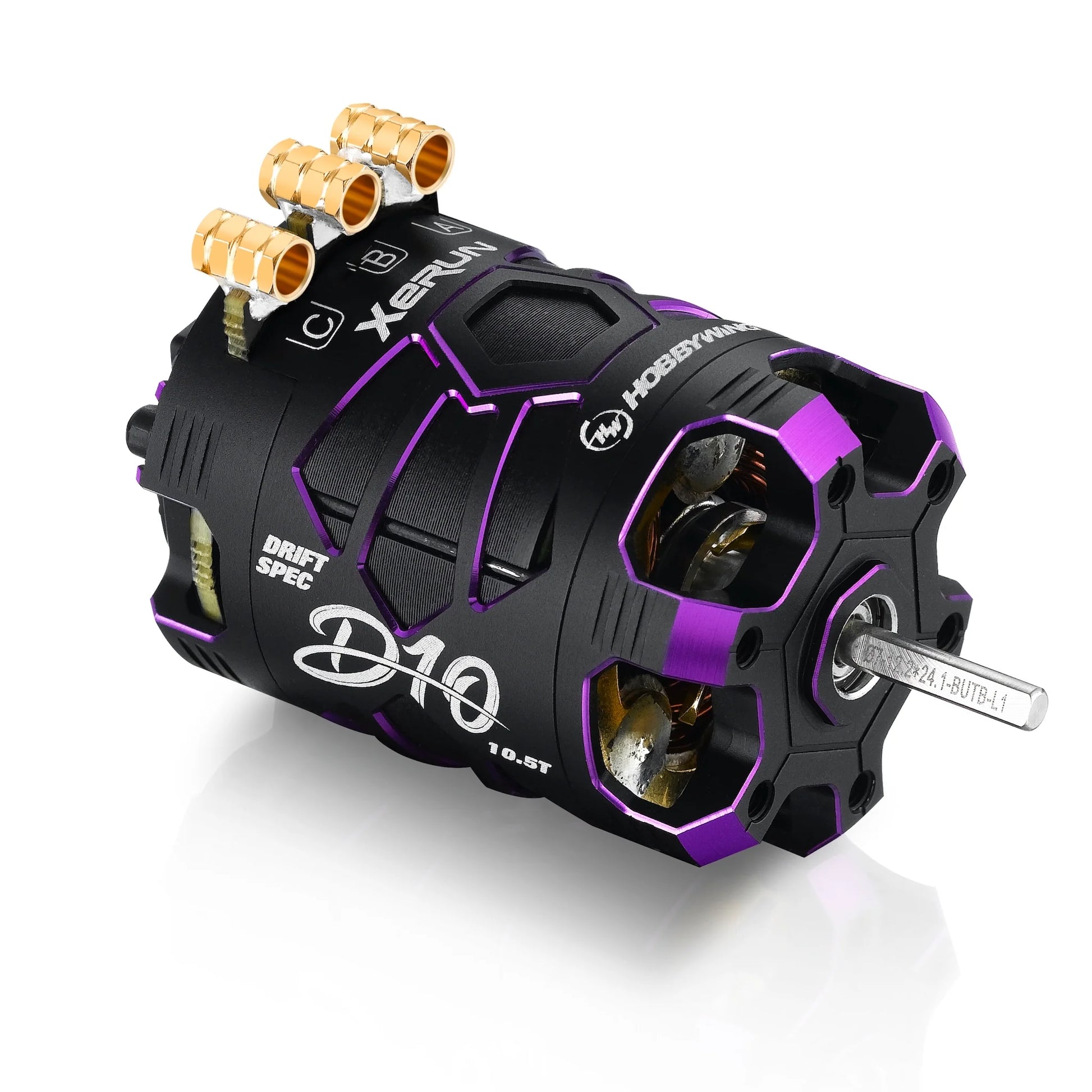

XERUN D10 13.5T /10.5T Purple (Spirit) Motor

Hobbywing XERUN D10 Premium Sensored Brushless Motor for 1/10th Drift

The XERUN D10 is Hobbywing's drift-dedicated brushless motor, engineered from the stator up for the unique demands of 1/10th scale drift racing. A redesigned drift-specific stator, built-in high-precision sensor board, and special-shaped gold fan rotor combine to deliver exceptional linearity, smooth power delivery, and efficient heat management — even with Turbo enabled. Available in 10.5T and 13.5T, each in three colorways to match your build.

Key Features

• Drift-optimized stator — New stator design improves motor efficiency and linearity specifically for drift applications
• Banana plug quick-swap — Factory-soldered 3.5mm banana plugs for fast, tool-free motor swaps between sessions
• Gold fan rotor — Special-shaped fan rotor provides active heat dissipation and produces the characteristic drift motor sound under Turbo
• Adjustable mechanical timing — Rear end-plate timing adjustment lets you tune RPM, efficiency, and power character to your track and setup
• Lightweight — 10.5T at ~157g, 13.5T at ~165g (incl. 3 gold insert weights) for easy weight-bias tuning
• Best paired with XD10 PRO ESC — Full sensored control and Turbo programming via the matched Hobbywing ESC

Specifications

Part Numbers by Turn, Color & Rotor

Pairs Well With

Xerun XD10 Pro ESC for 1/10th Drift Racing — — The recommended ESC match, providing full sensored control and Turbo programming for the D10 motor.

Timing Adjustment Guide

• Unfasten the screw on the rear end-plate to access timing adjustment; align to the white line marks and re-fasten after adjustment
• Increasing timing raises RPM but also raises motor temperature and reduces efficiency — higher timing typically requires a higher FDR
• Program your ESC before adjusting motor timing; refer to the ESC user manual for details
• After adjustment, run a full pack and check motor temperature with an IR temp gun — if too hot, reduce timing or increase FDR (fewer pinion teeth or more spur teeth)

Cautions

• Use M3 screws no longer than 7mm when mounting to your chassis
• Insulate all wires and joints before connecting to avoid short circuits
• Follow wiring order A–A, B–B, C–C between ESC and motor output wires
• Ensure sensor cable is clean and undamaged; check both connectors before connecting ESC to motor
• Re-check all ESC–motor connections before powering on
