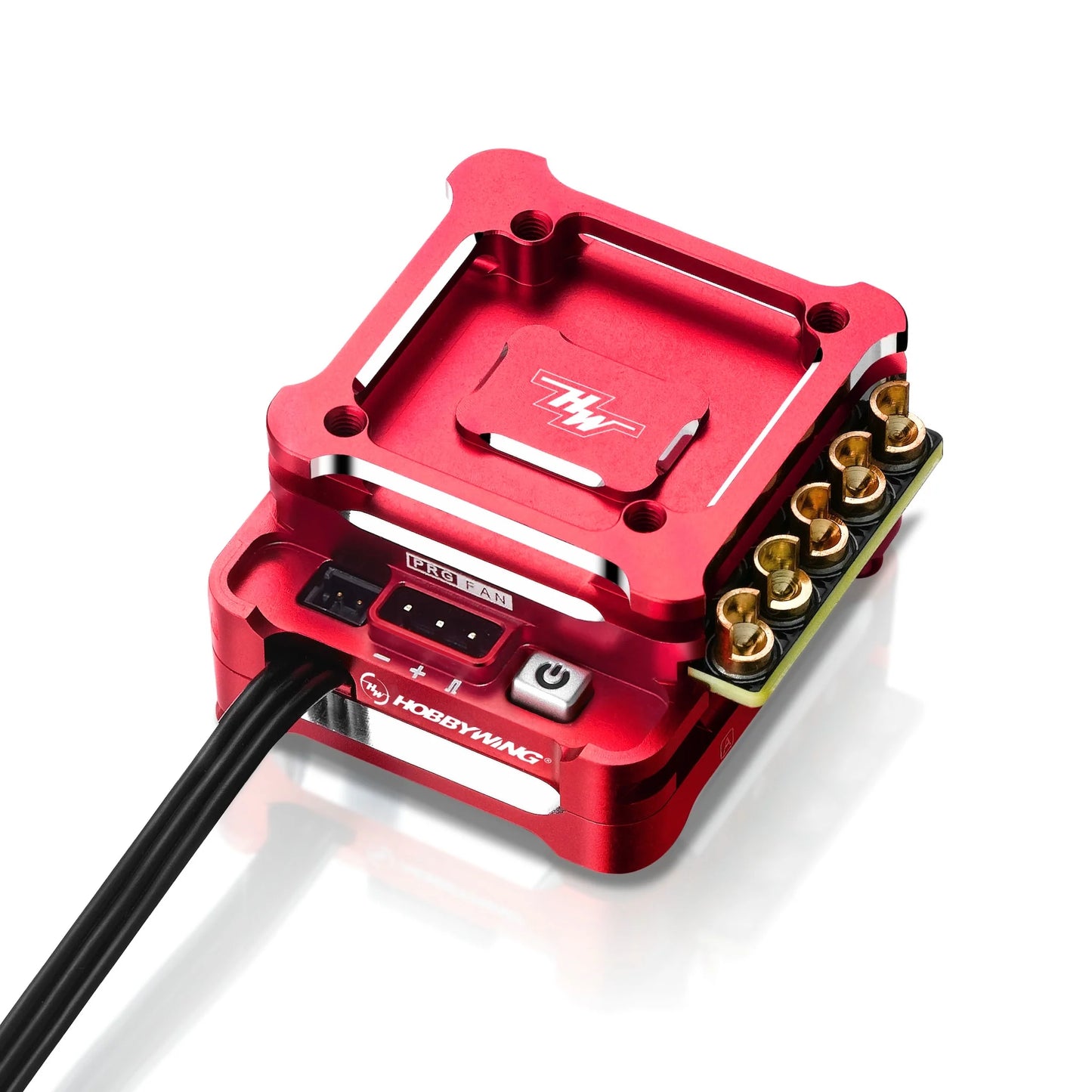

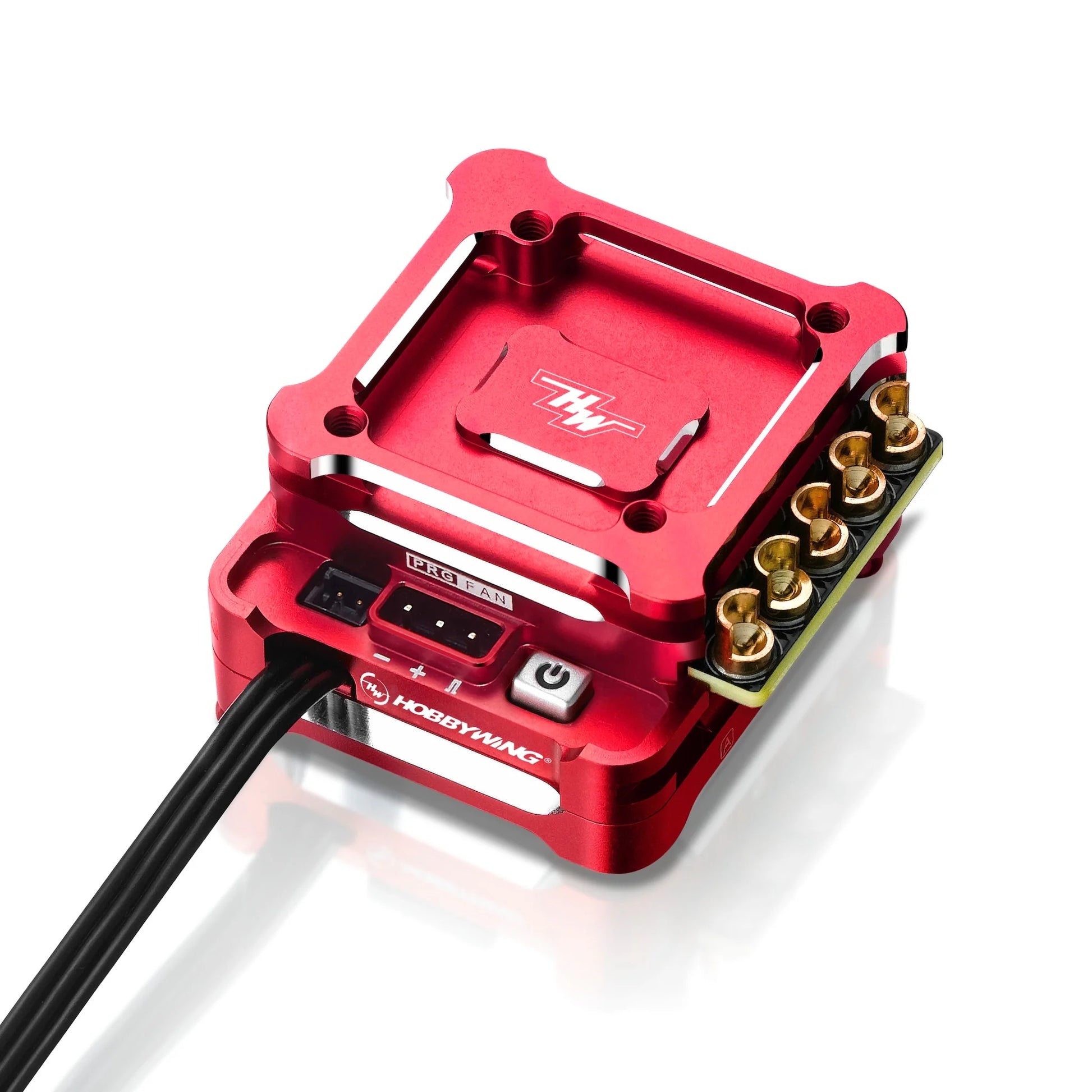

XERUN XD10 Pro Red (Passion) ESC
XERUN XD10 Pro Red (Passion) ESC
Regular price
$159.99 USD
Regular price
$230.00 USD
Sale price
$159.99 USD
Shipping calculated at checkout.
Hobbywing XERUN XD10 PRO ESC for 1/10th Drift Racing
The XERUN XD10 PRO is Hobbywing's purpose-built drift ESC, engineered to deliver precise, tunable power for 1/10th scale drift applications. With a 100A continuous / 800A peak rating, adjustable BEC output, variable PWM and brake frequency control, and full data logging, the XD10 PRO gives serious drift drivers the tools to dial in every aspect of their power system.
Key Features
- Adjustable switch-mode BEC — 10A max output, voltage adjustable from 5V to 7.4V in 0.1V steps to match servo and accessory requirements
- PRG/FAN port — Powers an external cooling fan for maximum thermal headroom, or connects an LCD program box or WiFi module for tuning
- Variable PWM & brake frequency — Precise regulation of driving and braking forces for fine-tuned drift feel and motor response
- Comprehensive protections — Low-voltage cutoff, ESC and motor thermal protection, fail-safe (throttle signal loss), and reverse polarity protection
- Real-time data logging — Records max ESC/motor temperature, motor RPM, and other key metrics for post-run analysis
- Firmware upgradeable — Update via Hobbywing multifunction LCD program box or OTA Programmer (sold separately)
- Best paired with XERUN D10 Motor — Full sensored operation and Turbo tuning when matched with the D10 10.5T or 13.5T drift motor
Specifications
| Spec | XERUN XD10 PRO |
|---|---|
| Application | 1/10th Drift Car |
| Continuous / Peak Current | 100A / 800A |
| Input Voltage | 2S LiPo / 4–6S NiMH |
| BEC Output | 5–7.4V Adjustable, 5A Continuous (Switch-mode) |
| Wires & Connectors | 13AWG, 200mm |
| Programming | LCD Program Box / OTA (iOS & Android) |
| Firmware Update | LCD Program Box via USB (PC) / OTA |
| Size (w/ Fan) | 40.7 × 35.0 × 32.0mm |
| Weight (w/ wires) | 95g |
| Motor Limit | 8.5T minimum (2S LiPo / 6S NiMH) |
Part Numbers by Color
| P/N | Color |
|---|---|
| 30112614 | Stealth (Black) |
| 30112615 | Passion (Red) |
| 30112616 | Spirit (Purple) |
Pairs Well With
- XERUN D10 Drift Motor — 10.5T (4600KV) or 13.5T (2900KV) — the recommended motor match for full sensored operation and Turbo tuning
- XD10 Combo, Replacement Rotor, Cooling Fan
Authorized Hobbywing dealer. Warranty-backed, ships from US stock
| ID | Xerun XR10 PRO ESC - Generation 2 |
| p/n |
30112607 (Rejuvenator) 30112608 (Stealth) |
| Application | Brushless motor system for 1/10th, 1/12th Touring Cars & Buggies Racing, Splashproof |
| Cont./Peak Current | 160A/1200A |
| Input Voltage | 2S LiPo/5-6 Cell NiMH |
| BEC Output | 5V-7.4V |
| Wires & Connectors | Standard: 12AWG 200mm North America edition: 13AWG 200mm (30112609) |
| Programming device | LCD program box WiFi Express Module (available through Firmware update) |
| Firmware | LCD Program box via USB software (PC only) OTA available by WiFi Express (iOS / Android) - coming soon |
| Size & Weight | 37.5X30.9X32.5mm |
| Weight | d95g |
| Motor spec recommendation |
With 2S LiPo: 1/10th Touring Car≥4.5T |
|
|
Start from
$199.99 Free Shipping |
