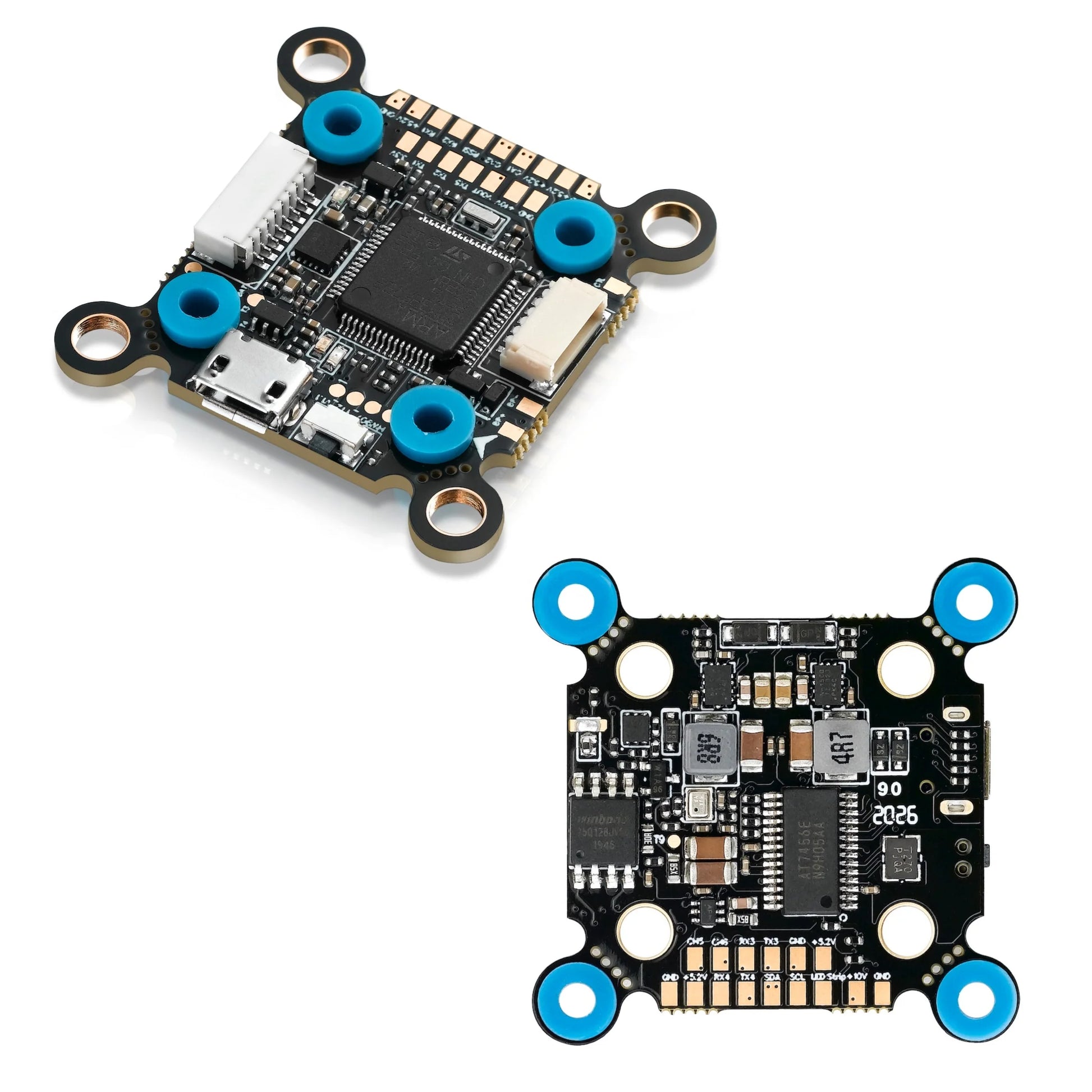

Hobbywing XRotor F7 Flight Controller (Convertible) — FPV Racing & Freestyle

The Hobbywing XRotor F7 Convertible is a full-featured flight controller built for FPV pilots who demand precision, flexibility, and seamless stack integration. With a dedicated DJI image transmission port, dual mounting hole pattern, and STM32F722 MCU, it’s engineered to pair perfectly with the Hobbywing XRotor 4-in-1 ESC tower — plug-and-play, no soldering required.

Key Features

• STM32F722 MCU with MPU6500 6-axis motion sensor for fast, accurate flight
• Dual mounting pattern: 30.5×30.5mm & 20×20mm — fits virtually any FPV frame
• Dedicated DJI image transmission port with flat cable included (plug-and-play)
• Built-in OSD — adjust parameters via Betaflight/Cleanflight configurator
• On-board 5V & 12V dual BEC for VTX and LED power
• On-board Pit Switch module — control VTX power via radio
• TF-card slot for flight log recording
• Bidirectional DShot support (DShot150/300/600/1200)
• Compatible with: PWM, Oneshot125, Oneshot42, Multishot, Proshot1000
• Receiver support: PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
• Application: FPV 130–300 class frames
• SKU: HW-31003002

TechRC Pro is an authorized Hobbywing dealer — every unit ships with full North American factory warranty and genuine factory support.
