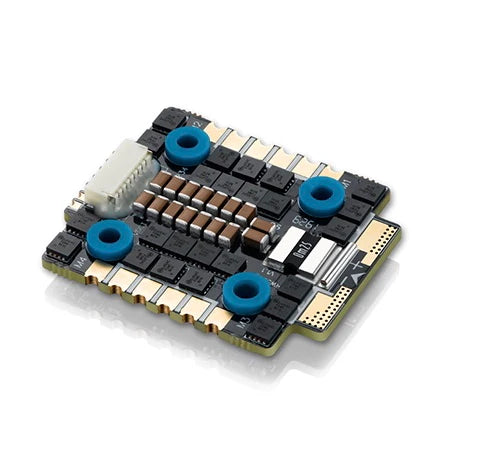

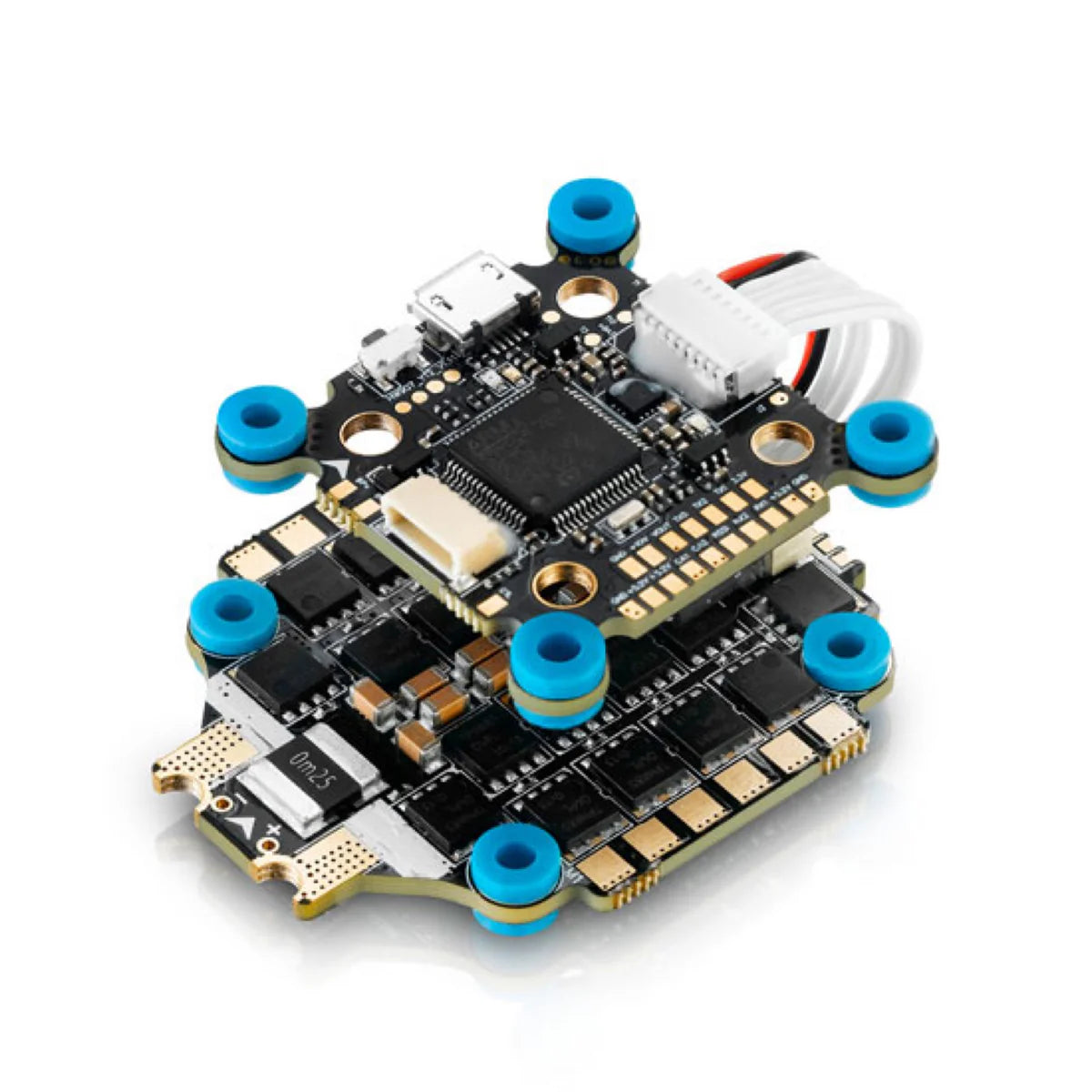

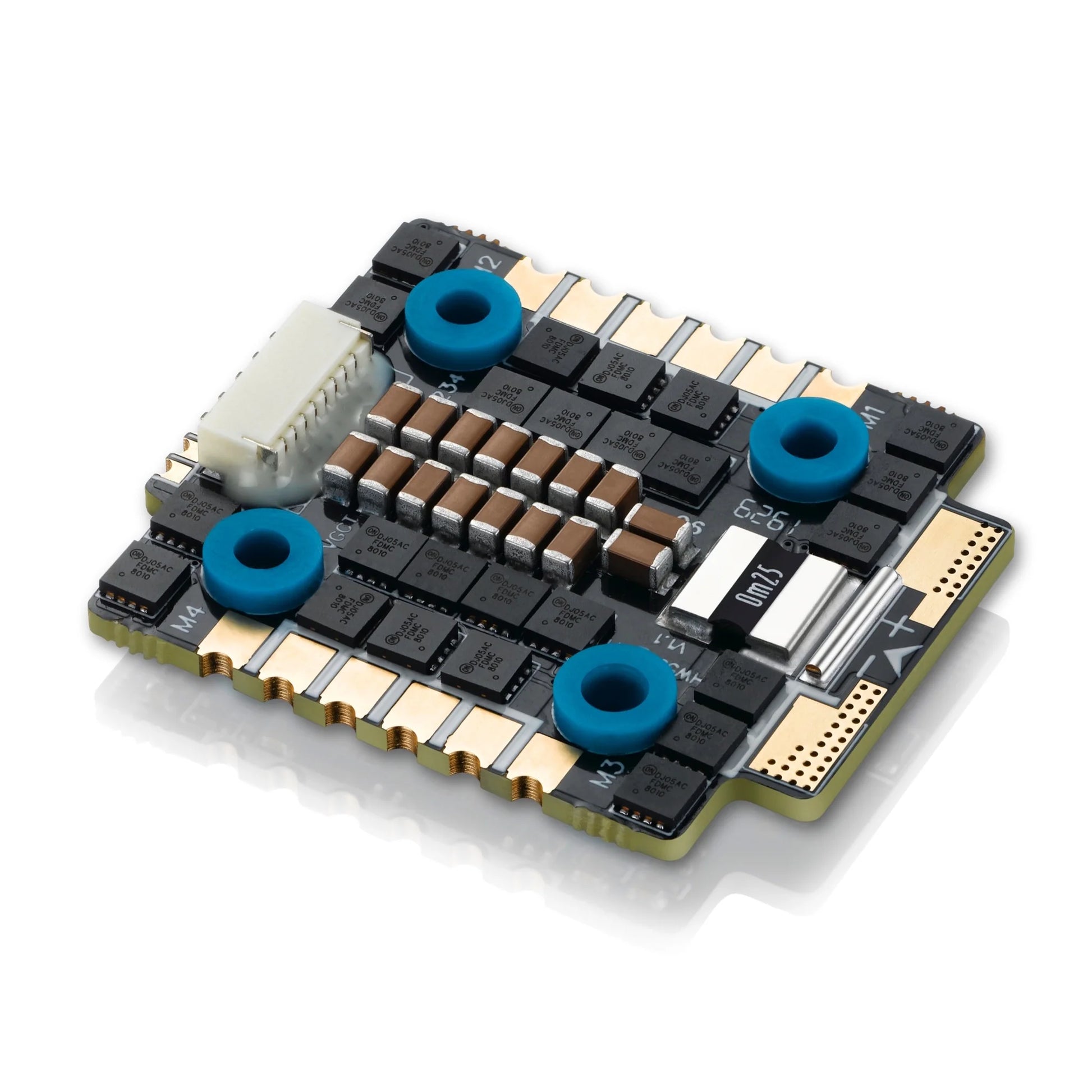

The Hobbywing XRotor FPV 30x30 65A 4-in-1 ESC is built for high-performance FPV racing and freestyle builds that demand serious current capacity in a compact stack format. Paired with the XRotor F7 flight controller, it delivers a clean, vibration-dampened tower stack with no soldering required between FC and ESC.
Key Specifications
Continuous Current: 65A × 4
Burst Current: 80A × 4
Mounting Pattern: 30.5×30.5mm
BEC Output: 5V @ 0.6A
Input: XT60 connector with 12AWG wires (130mm)
Output: Solder tabs (no output wires)
Weight / Size: 15g / 52×42×6.6mm
SKU: HW-30902064
Important Notes
Power capacitor must be installed — included in box. Use larger capacitor for 5S–6S, smaller for 4S–5S directly on PCB.
AM32 default settings must be used — custom settings can cause damage.
Motor KV / prop recommendations: 4S + 5" props up to 2700KV | 5S + 5" props up to 2450KV | 6S + 5" props up to 1750KV
TechRC Pro is an authorized Hobbywing dealer — every unit ships with full North American factory warranty and genuine factory support.
